Station Name: BROCKLEY WHINS
                         (2nd site)
Station still open but included for completeness
[Source: Alan Young]


Date opened: 19.6.1844
Location: At the northern end of Station Road, Boldon Colliery
Company on opening: Brandling Junction Railway
Date closed to passengers:

Still open

Date closed completely: Still open
Company on closing: Still open
Present state: Still open
County: Durham (now Tyne & Wear)
OS Grid Ref: NZ345628
Date of visit: 16.5.2013

Notes: The second Brockley Whins station for a short time enjoyed some importance as an interchange on the main line to Tyneside from the south of England. Trains from the south approached via Boldon on the Pontop & South Shields line and a tightly curved wooden viaduct. From November 1848 main line trains could reach Newcastle by means of a temporary Tyne bridge, which the High Level Bridge replaced in 1850. In June 1849 seven main line trains called on weekdays in each direction at Brockley Whins, and five called on Sundays.

The station building was designed by the celebrated architect G T Andrews and bore a resemblance to a number of others that he produced and which still survive in north-east England, including Shincliffe, on the ‘Old Main Line’ south of Leamside. The axis of the building was at right angles to the Sunderland – Newcastle platform, and it extended towards the curve used by trains to Washington and beyond, where there was probably a platform. The distinctive hipped-roof ground floor bay windows, favoured by Andrews, were found at each end, facing the platforms, and an arched porch was on the western elevation. The building was of large sandstone blocks, laid in courses, with a ridged slate roof. A two-storey section stretched east from the main axis, close to the southern end of the building, and also under a ridged roof. Beyond this was a single-storey extension. A further single-storey addition to the main building, also in sandstone, extended eastwards along the Newcastle platform, and yet another single-storey element, this time under a hipped roof, adjoined both of the previously mentioned extensions. To the west of the main building was a North Eastern Railway timber shed which was squeezed in next to the porch of the main building.

The original low platform was eventually raised so that the lower part of the bay on the main building was partly concealed. The west-to-north curve connecting to the old Pontop & South Shields route diverged opposite the down platform so the up (Sunderland-bound) platform needed to be placed to the east of the down platform. Whereas the building on the down platform was substantial, the up platform was provided with a modest brick waiting shelter. The west end of the up platform and the east end of the down were connected by a barrow crossing, and a footbridge was added at an unknown date.

On 1 October 1850 the new direct main line opened between Washington and Pelaw, and Brockley Whins was thereafter confined to dealing with trains between Newcastle and Monkwearmouth (Sunderland) and on the South Shields line, the latter ceasing in 1853. At this time there was little local population to serve but, using 1901 census material, the NER estimated that 4,295 people were within the station’s catchment. In 1911 ticket bookings stood at 63,708, the mining village of Boldon Colliery, over half-a-mile south of the station probably supplying most of the passengers. Whellan’s 1894 Directory of County Durham noted that ‘Boldon Colliery is a large village, comprising over 500 miners' cottages …there is a railway junction at Brockley Whins, which is the nearest railway station’.

As Brockley Whins amounted to little more than a hamlet half-a-mile east of the station, and lacked easy access to it, the LNER renamed the station Boldon Colliery on 1 March 1925; the LNER had taken control of the former NER lines in the Grouping of 1923. Although the station was renamed, the adjacent junction continued to be known as Brockley Whins.

In January 1948 Boldon Colliery station became part of British Railways (North Eastern Region). In summer 1950 the train service was approximately hourly on weekdays with extras in the rush hours; 15 up and 21 down trains called. On Sundays there were 15 up and 16 down departures. In the late 1950s the station was fitted with BR(NE) tangerine coloured vitreous enamel totem name signs, but the LNER wooden running-in nameboards with raised lettering were kept and re-painted in tangerine.

The Reshaping of British Railways (‘Beeching’) report of March 1963 did not recommend the Newcastle – Sunderland local services and stations for closure, although several stations on the route onward to Middlesbrough were earmarked and closed in 1964. Nevertheless, as part of the programme of withdrawing goods services from wayside stations, Boldon Colliery ceased to handle goods traffic on 9 March 1964. On 2 January 1967 the North Eastern Region was abolished and its lines and stations were transferred to Eastern Region management. The Newcastle – Sunderland local services were among those changed by the Eastern Region to ‘Paytrain’ operation in which, as an economy measure, booking offices were closed at all but the most important stations and tickets were issued instead by conductor-guards on the train. Boldon Colliery and all of the other intermediate stations between Newcastle and Sunderland (and on the South Shields branch) consequently became unstaffed on 5 October 1969.

Without staff in place, station buildings were targeted by vandals and rapidly became derelict and dangerous. Boldon Colliery retained gas lamps, which required attendance by staff to light and extinguish, and within months of de-staffing most of them were broken. By 1971 the station received electric lighting on the tall vandal-proof standards favoured by the Newcastle Division of the Eastern Region, and the substantial buildings on the down platform were demolished soon afterwards to be replaced with a single ‘bus shelter’. The existing simple brick shelter on the up platform was retained. The LNER nameboards, minus some of their letters, were the only signage on the station by 1973 as the totems had disappeared, but in 1974/5 Corporate Identity name signs were installed.

Since World War II housing development had reached Boldon Colliery station from the north. The colliery after which the village and station was named closed in 1982, and the decision was taken by British Rail to restore the station’s original name of Brockley Whins, which took place on, or shortly before, 8 July 1991. The station was re-signed with nameplates which, unusually, gave both the new and the old name and were in Tyne & Wear Metro cadmium yellow livery with the distinctive Calvert font, plus T&W and BR logos. Despite this Metro-style signage it was not until 31 March 2002 that the station welcomed Metro trains when the Pelaw – Sunderland – South Hylton service was introduced. In preparation for its transfer the ‘staggered’ up platform was replaced with one that faced the down platform and new platform shelters, lighting and signage were installed.

BRIEF HISTORY OF 'THE OLD MAIN LINE'
The ‘Old Main Line’ was the name frequently given to the railway between Ferryhill and Pelaw in County Durham which, from 1850 until 1872 formed part of the ‘East Coast’ route from London (Kings Cross) to Newcastle. Prior to 1850 trains ran via Brockley Whins, prior to the opening of the Washington – Pelaw line, and until 1848 terminated at Gateshead rather than Newcastle. From 1872 the present East Coast main line route was used, with diversions in 1906 when the opening of King Edward Bridge removed the need to travel via Gateshead (West) and at Newton Hall Junction, north of Durham, where the curvature of the tracks was reduced in the late 1960s. The evolution of the ‘Old Main Line’ was far from straightforward.

By the beginning of the nineteenth century waggonways were already in existence to move coal from the mines in south-east Northumberland and north-eastern County Durham to tidal water for export. It stands to reason that passengers will have been carried unofficially on such lines, but the first recorded passenger transport by rail in north-east Durham was in 1834 on the Pontop & South Shields route. Originally opened as the Stanhope & Tyne Railroad, it was not established by parliamentary Act but was built on the ‘wayleave’ system under a Deed of Settlement dated 3 February 1834, perhaps to conceal the ambitious nature of the scheme, which was 33¾ miles in length. Under this arrangement the company was to pay a toll, based on the amount of traffic carried, to each landowner through whose property the railway passed.



The south-western end of the line was in Weardale, on the moors just south of Stanhope. Here limestone was quarried, and there were deposits of coal available at intervals between Consett and South Shields. In July 1832 building of the line began, and progress was rapid. Although much of the terrain it crossed was moorland at high altitude, few earthworks were constructed or excavated, and some steep slopes on the south-western section of the route were negotiated with inclines; indeed more than half was worked by inclined planes, either self-acting or with a winding engine, and a few near-level stretches were worked by horses. Locomotives were used only at the eastern end. Much of the line remained unfenced until it closed in the 1960s. The route from Stanhope lime-kilns to Annfield was opened on 15 May 1834, and the eastern section onward to South Shields on 10 September 1834. The engineer T E Harrison surveyed the route; he was to become one of the most influential personnel of the NER.

The carriage of minerals was the priority of the Stanhope & Tyne, and no attempt was made to serve centres of population which would generate passenger traffic. Nevertheless there were requests for passengers to be conveyed so they were permitted to ride free-of-charge on top of the coal wagons. Soon a wagon was attached specifically for passenger use, and shortly afterwards a separate locomotive-hauled passenger coach was provided fortnightly on pay days. Finally, on 16 April 1835, a full passenger service was instated between Durham Turnpike (one mile north of Chester-le-Street) and South Shields, possibly calling from the start at Vigo and Washington. At South Shields a nearby inn sold tickets, and passengers boarded the train in sidings. Part of this route, from Washington to Brockley Whins, was to become a section of the original ‘Old Main Line’. The isolated stretch of passenger railway between Durham Turnpike and South Shields was joined by the Brandling Junction Railway from Gateshead to Brockley Whins, three miles south-west of South Shields, opening to minerals on 30 August 1838 and passengers on 5 September 1839; and the Durham Junction Railway, stretching north from an obscure terminus at Rainton Meadow (with horse-bus connection to Durham) to Washington opened for mineral traffic on 24 August 1838 and passengers on 9 March 1840.

Unfortunately the cost of running the Stanhope & Tyne proved unsustainable. In the moorlands wayleaves cost about £25 per mile per year, but at the eastern end the figures were £300 or more. The outgoings on wayleaves alone amounted to £5,600. Plans for a dock (where Tyne Dock was later opened) were abandoned. Traffic did not develop to the expected levels and the wayleaves proved to be financially crippling. By the close of 1840 the railway company was £440,000 in debt, and it was wound up on 5 February 1841. The following year the Pontop & South Shields Railway obtained an Act to take over the northern end of its track which had hosted the passenger service. The Derwent Iron Company took control of the section south-west of Carr House to bring limestone from Stanhope to its furnaces at Consett. This section later passed into the hands of the S&D.

The Brandling Junction Railway (BJ) originated as a private venture by brothers R W and J Brandling to connect Gateshead, South Shields and Monkwearmouth. The brothers obtained an Act to buy or purchase leases for the land over which their lines would pass, but they chose to proceed by the wayleave system. A company came into being on 7 September 1835 to acquire the assets of the Brandling Railway, and as the Brandling Junction Railway Company it was incorporated by Act of Parliament on 7 June 1836. The Stanhope & Tyne also sponsored a Gateshead, South Shields & Monkwearmouth Railway, but discussions with the BJR resulted in the abandonment of the plan. The BJR opened in three sections. The first was from the Newcastle & Carlisle Railway’s Redheugh in Gateshead, adjacent to the River Tyne, which ascended at 1:23 through Greenes Field to Oakwellgate; this was operated by a stationary engine. A self-acting incline from Gateshead Quayside was opened with it on the same day, 15 January 1839. The route from South Shields to Monkwearmouth opened on 19 June 1839, followed by the connecting lines between Gateshead and Cleadon Lane (later East Boldon) and between Brockley Whins and Green Lane (north-east of Brockley Whins) on 5 September 1839. A chord known as the Newton Garths branch opened on 9 September 1839 between East Boldon and West Boldon junctions, immediately south-east of Pontop Crossing, but this was not used by passenger trains. On 9 March 1840 the west-to-north link between the BJ and S&T opened at Pontop Crossing which enabled through services between the several termini at Gateshead, South Shields, Monkwearmouth and the Durham Junction Railway’s Rainton Meadows to operate. However services from the south had, at first, to reverse from just north of Pontop Crossing to reach Brockley Whins in a complex operation (described on the Brockley Whins page).

The Durham Junction Railway (DJ) was authorised by an Act of 16 June 1834. It became an important link in the chain of railways forming the ‘Old Main Line’, the original intention was merely to redirect to the Tyne coal from the pits in the Houghton-le-Spring area, and from pits served by the Hartlepool Railway. Even these modest ambitions were not realised as its southern terminus was to be at Rainton Meadows, two miles short of Moorsley, its intended destination, and the Houghton-le-Spring branch, authorised by an Act of 1837, was never constructed. Nevertheless a ‘Station Road’ was partly constructed in Houghton – the triumph of hope over reality – which was to be one of the largest population centres in the North-East never to have the benefit of a passenger station.

The DJ’s crowning glory was the stately stone viaduct over the River Wear between Penshaw and Washington, and based upon the Roman bridge at Alcántara, Spain. The last stone was laid on the day of Queen Victoria’s coronation, 28 June 1838, thus it was named Victoria Bridge (or Viaduct). The engineer T E Harrison constructed four main arches, those at each end of 100ft span and the two central arches of 160ft and 144ft; the total length was 811ft and the height above water level was 135ft. In 1843 the DJ became part of the portfolio of the ambitious George Hudson (the ‘Railway King’) as part of his plan for an integrated east-coast route. The Act of 23 May 1844 which confirmed his purchase of the line also made provision for the project of bridging the Tyne.

At Washington the DJ connected with the Stanhope & Tyne whose metals were used as far as Brockley Whins. Here the BJ line was joined, and the passenger service between Rainton Meadows and Gateshead took this route from its inception on 9 March 1840. The S&T owned over half of the DJ shares and also worked the services. As noted above a reversal was necessary at Brockley Whins, and this inconvenience was compounded by congestion caused by the DJ and S&T/P&SS trains sharing the line between Washington and Brockley Whins. To allow more efficient operation powers were sought to construct a direct curve and to widen the line between Washington and Brockley Whins: an Act of 23 May 1844 authorised these projects. The curve was on a difficult site intersected by the River Don and was constructed on a wooden viaduct which stood until 1940. The viaduct was used by main line trains until 1 October 1850 when the more direct route between Washington and Pelaw via Usworth was opened.

For the next stage in the evolution of the ‘Old Main Line’ through County Durham it is necessary to return to the 1830s. The Great North of England Railway obtained its Act for a route from Redheugh Quay at Gateshead to Croft (south of Darlington) on 4 July 1836. After opening from York to Darlington the GNE decided, for financial reasons, not to construct the route onward to Gateshead, and on 5 October 1841 agreed to relinquish the powers to Robert Davies, James Richardson and John Hotham, who acted on behalf of the embryo Newcastle & Darlington Junction Railway. The N&DJ agreed to apply for powers to finish the line and pay all costs. The N&DJ was incorporated on 18 June 1842, and on 11 April 1843 the northern part of the GNE was transferred by Act of Parliament to the N&DJ. Work proceeded swiftly, and the line opened throughout on 15 April 1844 to mineral traffic and to passengers on 19 June. The short section between Belmont Junction (where the Durham branch left the main line) to join the Durham Junction line at Rainton Crossing was the last to be completed. There was now a direct railway link from London to the Tyne: on 18 June 1844, the day before the route opened to regular passenger traffic, a special train made history when it ran from London (Euston Square) to Gateshead in 9h 21m, including stops totalling 70 minutes. At the time of opening the N&DJ did not actually own the line beyond Washington, but had a station at Gateshead, reached via the P&SS and BJ railways: although only authorised by the Act of 23 May 1844 the station was illustrated by an engraving in a Gateshead newspaper four weeks later.

The early days of the N&DJ were difficult owing to strained relations with the GNE. For details see K Hoole’s Regional History vol 4.

The original ‘East Coast’ main line of 1844 therefore ran from Ferryhill to Gateshead via Shincliffe, Leamside, Penshaw, Washington, Brockley Whins and Pelaw. The Gateshead terminus was at Oakwellgate, which had opened on 5 September 1839. On 2 September 1844 Oakwellgate closed, and the service was diverted to the Greenesfield terminus, which had opened on 19 June 1844. This terminus, in turn, gave way to a new through station which would eventually be known as Gateshead East, when the main line was extended to Newcastle Central, crossing the River Tyne on a temporary bridge (opened 1 November 1848) then on the High Level Bridge, which opened on 30 August 1850. From 1 October 1850 the new, shorter route via Usworth was used between Washington and Pelaw, avoiding Brockley Whins. This ‘Old Main Line’ or ‘Leamside’ route was used until 15 January 1872 when through express services were diverted to the route via Durham.

The ‘Old Main Line’ continued life as an important freight route and retained its stopping passenger service between Leamside and Ferryhill into LNER days. This service - latterly amounting to four up and five down trains on weekdays and one up on a Sunday, calling at the intermediate stations of Shincliffe and Sherburn Colliery – was to have been withdrawn in 1939 but closure was deferred until June 1941. Thereafter the Leamside – Ferryhill line was used for passenger trains diverted from the main line via Durham and for freight traffic. In 1991 British Rail mothballed the line, but owing to dumping of rubbish on the lines, removal of rails at level-crossings, theft of 2½ miles of track near Penshaw in 2003, and effects of overall neglect Network Rail decided to close the line entirely and the rails were removed by April 2013. Concrete sleepers recovered from the route are understood to be destined for re-use on the Waverley Route currently under construction between Edinburgh, Galashiels and Tweedbank.

The Durham diversion was, like the development of the Leamside route, a result of evolution rather than one direct action.



BRIEF HISTORY OF 'THE NEW MAIN LINE'
Access to Gateshead from the south was via Leamside until 1872, when the present-day East Coast main line superseded it. However much earlier, in July 1846, the York & Newcastle Railway announced its intention to promote a Bill for a line following a route via the Team valley from Gateshead (and ultimately Newcastle). On 30 June 1848 the Y&N – by now the York, Newcastle & Berwick Railway – obtained an Act authorising construction. The proposed route was from Gateshead via Team Valley to Newton Hall, where a branch to Durham and Bishop Auckland continued southwards, while the main line curved eastwards for about a mile then turned south to join the main line near Belmont Junction. However in 1849 the work was postponed owing to the downfall of George Hudson.

The NER in 1862 revived the project, but the line authorised was only between Gateshead and Newton Hall on the Bishop Auckland branch north of Durham, which had opened from Leamside in 1857. The section eastwards from Newton Hall had been constructed as part of the Bishop Auckland branch, but there was no west-to-south curve near Leamside to allow through running from the north onto the old main line via Shincliffe. Consequently the new line could be used only as an alternative route to Durham and the south via Bishop Auckland; and at first there were only four stopping trains in each direction between Newcastle and Durham. The Team Valley route opened on 1 December 1868, and it became part of the ‘new’ East Coast main line on 15 January 1872 when the line between Relly Mill Junction (one mile south of Durham) and Tursdale Junction (one mile north of Ferryhill) was completed.

SUNDERLAND TO DURHAM (AND BISHOP AUCKLAND) VIA LEAMSIDE
Despite its name the Durham & Sunderland Railway (D&S) – not via Leamside – never did not reach Durham City. Its route from South Dock, Sunderland, extended through Murton to Haswell (where the Hartlepool Dock & Railway Company already had a terminus) which opened in 1836, with a branch from Murton through Hetton, Pittington and Sherburn House to Shincliffe, two miles south-east of the Durham City centre, which opened in 1839. The North Eastern Railway eventually diverted the line from Shincliffe to terminate in Durham at Elvet station in 1893.

In an Act of 27 July 1846 the Newcastle & Darlington Junction Railway (see ‘Old Main Line’ history) was authorised to build a line from Pensher (later known as Penshaw) to join the D&S Railway at Sunderland. The line was known as the Painshaw Branch (another variation on the spelling of Penshaw). From Sunderland as far as Penshaw the line followed the River Wear valley but its route was generally some distance from the river to avoid a meander near Hylton and to serve the communities which were growing south of the river. The line opened on 20 February 1852 for goods traffic and 1 June 1853 for passengers. The terminus in Sunderland was Fawcett Street station, which opened on the same day on the southern edge of the developing commercial centre of the town.



The Bishop Auckland branch from Leamside via Durham opened to passengers on 1 April 1857. Beyond Leamside, at Auckland Junction (later known as Leamside Junction) it swung westwards from the route to Ferryhill, crossed the River Wear on a viaduct, then sharply south-west to reach Durham City. The curious dog-leg in the route enabled the line to follow the intended course of the moribund YN&B project of 1848: see details in the section above on the ‘new’ main line. Durham City’s centre is densely built up on the narrow, steep-sided peninsula within a meander of the River Wear, dominated by the cathedral and castle; the railway did not enter this historically important area, but passed by to the north-west, where a substantial viaduct was necessary and the city’s station was found. The Leamside – Bishop Auckland branch now provided an alternative route between Durham and Sunderland, far more convenient than via the Durham & Sunderland’s Shincliffe (for Durham) terminus – which was abandoned in 1893 when the D&S was re-routed to a terminus at Durham Elvet. On the day the Bishop Auckland branch was opened the branch from Belmont Junction to Durham Gilesgate closed to passengers: this had been opened by the N&DJ on 15 April 1844, providing the first station in Durham City.

From 1857 Leamside station enjoyed some importance as the de facto junction where trains to and from Sunderland and Durham connected with the services on London Kings Cross – Newcastle – Edinburgh main line. Fencehouses or Penshaw could equally have been awarded this status, but Leamside station, in its remote rural surroundings, was rebuilt with an island platform and bays at each end to accommodate the connecting services and allow convenient interchange by passengers. Its importance was short-lived and was suddenly removed when the new main line route between Ferryhill and Newcastle via Durham opened in 1872. Leamside station was now an extravagance, with little local population to serve; conversely the splendid Durham viaduct, originally serving only the Leamside – Bishop Auckland branch, was now a prominent feature of the main line providing a vantage point from which millions of passengers would be able to admire Durham and its cathedral.

In Sunderland the inconvenient gap between Monkwearmouth, the terminus of trains from Newcastle and South Shields on the north bank of the River Wear, and the lines from the south was closed in 1879 when in the ‘Monkwearmouth Junction’ project a bridge over the river and a tunnel under the town centre were constructed together with a new station known either as Sunderland (or Sunderland Central). From August 1879 Fawcett Street station closed and trains on the Durham line ran into the new station. The Central station also replaced the Hendon terminus, formerly used by trains to Seaham and West Hartlepool.

As with most lines in northern County Durham the Sunderland – Durham route carried large quantities of goods and mineral traffic, notably coal. Several collieries were directly linked to the line, and there were branches into shipyards and Deptford staiths on the Wear as well as to the Hudson, Henson and South docks on the coast.

Expecting that coal exports from Sunderland’s South Dock would increase, the North Eastern Railway and local authorities jointly funded the construction of the Queen Alexandra Bridge, to carry both rail and road traffic in the manner of High Level Bridge between Gateshead and Newcastle. The NER paid £325,000 (including railway approaches) while Sunderland Corporation contributed £146,000 and Southwick Council a further £11,000. The new bridge and associated lines would enable coal from the ex-Stanhope & Tyne line to reach South Dock, eliminating reversals at Washington and Penshaw, using instead a mineral line from Southwick Junction (between Washington and Boldon) over the new Queen Alexandra Bridge, then the Sunderland – Durham line from Diamond Hall Junction (just west of Millfield station). The bridge opened in 1909, but from the NER perspective it was a financial disaster since it apparently carried one coal train per day until the early 1920s when regular traffic ceased.

Passenger services on the Sunderland – Durham line remained frequent. However from the 1920s motor buses began to provide a more intensive service and linked the numerous mining villages and towns in north-east Durham. The ‘Old Main Line’ south of Leamside lost its passenger services in 1941. On the Sunderland – Durham route, apart from the very early loss of Frankland station, between Leamside and Durham, in 1877, casualties began with Leamside in 1953, followed by Millfield in inner Sunderland in 1955. Diesel multiple units replaced steam haulage on the route during 1957. Further economies were exercised when Pallion and Penshaw were downgraded to ‘staffed halts’ and Cox Green became an ‘unstaffed halt’ on 14 August 1961. Passenger traffic censuses in summer 1962 and winter 1962-3 showed a respectable level of use on Monday-to-Friday of Hylton and Pallion stations, but limited traffic at the other stations, notably Cox Green.

The Reshaping of British Railways (‘Beeching’) report of March 1963 recommended the withdrawal of passenger services between Sunderland, Durham and Bishop Auckland - as well as the services between Newcastle and Washington - and the official proposal of closure was published on 19 July 1963. Not a single objection was lodged to the Washington closure, which took place on 9 September 1963. BR must have been unprepared for the lack of resistance to this closure as a timetable for Usworth and Washington stations appeared in the winter 1963-4 North Eastern Region book. On 28 February 1964, having considered objections to the Sunderland – Durham – Bishop Auckland proposals, Ernest Marples, Minister of Transport, consented to the closure, and services were officially withdrawn on 4 May 1964.

The author was blissfully unaware of this development, and alighted from a Newcastle train at Durham on 15 May to catch the Sunderland train, only to be informed that the last one had gone! He decided to travel on to Darlington and Middleton-in-Teesdale instead – which was still open.

Goods services ceased between Leamside (Auckland Junction) and Durham (Newton Hall Junction) and at Finchale siding (Frankland) on 22 October 1964. The tracks into the former Fawcett Street terminus in Sunderland, which had continued as a goods facility reached from the Durham line, were severed on 3 October 1965. Goods services were retained between Penshaw and Sunderland until 21 August 1967 when they were discontinued west of Hylton Quarry sidings. In January 1971 traffic ceased between Hylton Quarry and Pallion, and the line was officially taken out of use on 20 November 1976. The remainder of the line to Hendon, including Deptford Johnson Siding closed to goods on 27 November 1984. The section of the ‘Old Main Line’ which the Sunderland – Durham services shared between Penshaw Junction and Auckland Junction continued in goods use for some years more, but was ‘mothballed’ in 1991 but closed in 2012.

Sources and bibliography:

Tickets from Michael Stewart, Bradshaws from Chris Totty & Nick Catford. Route maps drawn by Alan Young.

To see other stations on the Old Main Line click on the station name: Felling 2nd, Felling 3rd , Felling 1st, Pelaw 1st, Pelaw 3rd, Pelaw 4th , Pelaw 2nd, Usworth, Washington 2nd, Washington 1st, Penshaw 1st, Penshaw 2nd, Fencehouses, Rainton, Rainton Meadows (on branch), Leamside 1st, Leamside 2nd, Belmont Junction, Durham Gilesgate (on branch), Sherburn Colliery, Shincliffe & Ferryhill

See also Coxhoe (branch from Ferryhill)

See also: Springwell, Brockley Whins (1st site) & Boldon (route prior to 1850)

See also Sunderland and Durham (via Leamside):
Durham (still open), Frankland, Cox Green, South Hylton , Hylton, Pallion 1st, Pallion 2nd , Millfield 2nd, Millfield 1st, Millfield 3rd , Sunderland Fawcett Street (on branch) & Sunderland Central (Still open)


Station still open as part of the Tyne & Wear metro


Looking west from the footbridge at Boldon Colliery station in 1962. The up platform is behind the camera. The down platform seen here retains its substantial building. The lines to the right lead towards Tyne Dock and South Shields and are used only for freight traffic.
Copyright photo from Stations UK

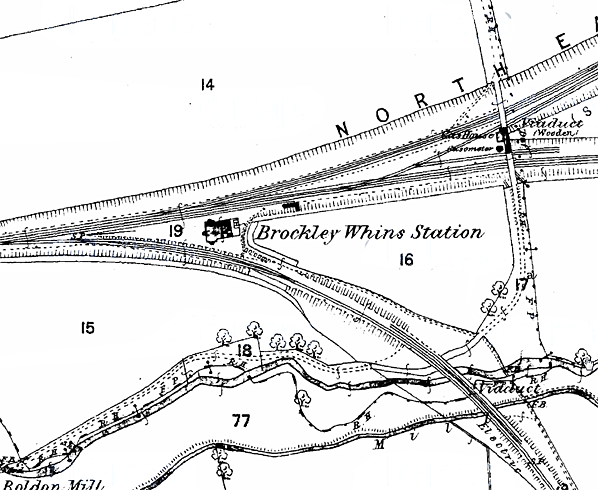

1873 1:2,500 OS map. Brockley Whins station is in an almost uninhabited area, emphasising its origin as a passenger interchange station. By 1873 this function has ceased, as the line curving northwards carried passenger traffic only in the 1830s and 1840s, and the curve from the south ceased to carry passengers in 1850. Both lines are retained for goods and minerals traffic as a number of coal mines operate in north-eastern County Durham, and the line to the north leads to the south bank of the Tyne, about two miles away, and its coal exporting facilities.

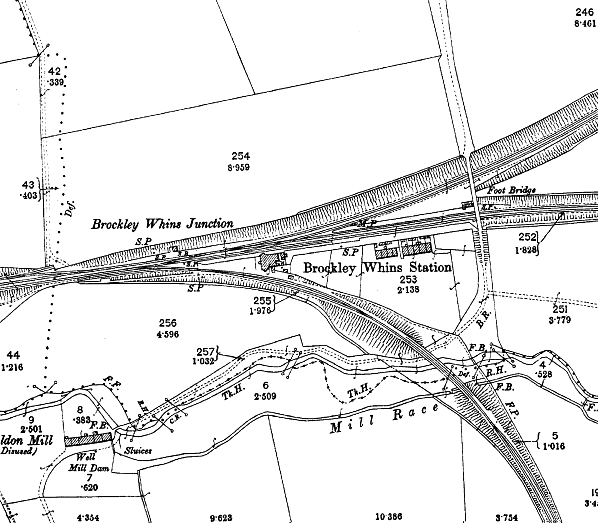

1897 1:2,500 OS map. The station building at Brockley Whins can be seen in the angle between the east-west line from Newcastle to Sunderland and the tight west to south curve leading to the Pontop & South Shields line; between 1844 and 1850 main line trains between London and Gateshead/Newcastle used this curve. North of the station another line leads towards Tyne Dock, and from 1840-44 it was used by trains connecting South Shields and Gateshead which called at a platform at Brockley Whins, a short distance west of the station shown here. The staggered platforms can be made out, the up one (north of the tracks) displaced to the east of its neighbour. Some railway cottages are seen immediately east of the station in this otherwise lightly populated landscape.

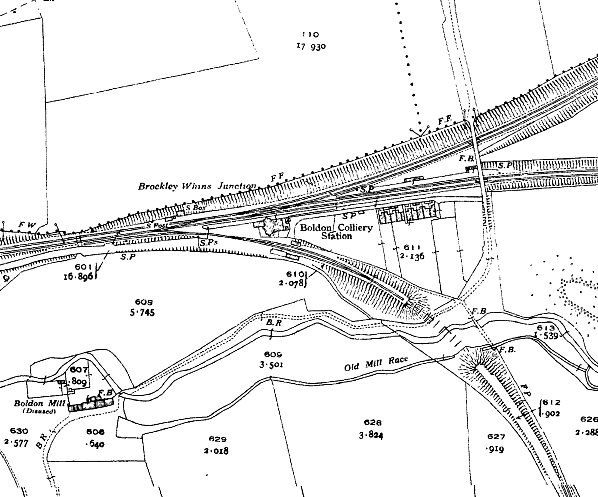

1930 1:10,560 OS map. Brockley Whins station was renamed Boldon Colliery in 1926, and this is acknowledged on the map. Little has changed at the station, but tracks have been lifted on the west to south curve beyond Boldon Colliery station, and the wooden viaduct over the River Don is shown to have been removed – although Hoole refers to its demolition taking place in 1940. A short section of the line has been retained as a siding at the station.

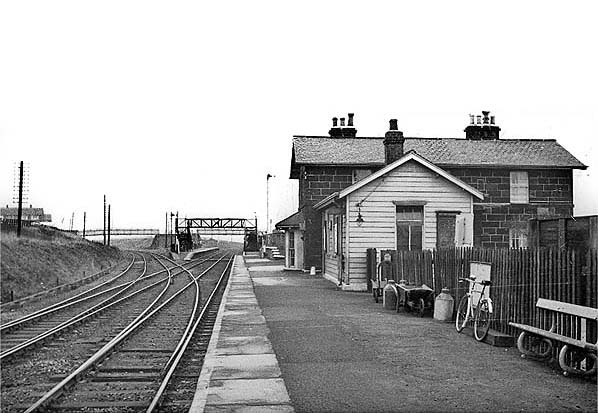

Boldon Colliery station looking east on the down (Newcastle-bound) platform in 1962. The stone station building dates from 1844 and the timber shed, closer to the camera, is a later NER addition. The up platform is reached by the footbridge at the far end of this platform. Interesting detail in the foreground includes an NER ‘coiled serpent’ seat, a churn and two barrows; the station ceased to be staffed from October 1969, and within four years every feature of interest on this platform, including
the buildings, was removed
Copyright photo from Stations UK

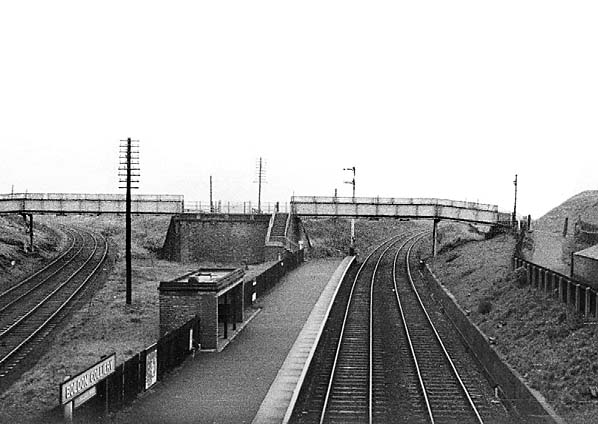

Looking east from the footbridge towards the up platform at Boldon Colliery station. The facilities on this platform are basic in comparison to what is provided on the down platform, behind the camera: the LNER running-in nameboard , with the addition below it of ‘For Brockley Whins’, gas lamps, and the unappealing brick shelter are all that this platform has to offer.
Copyright photo from Stations UK

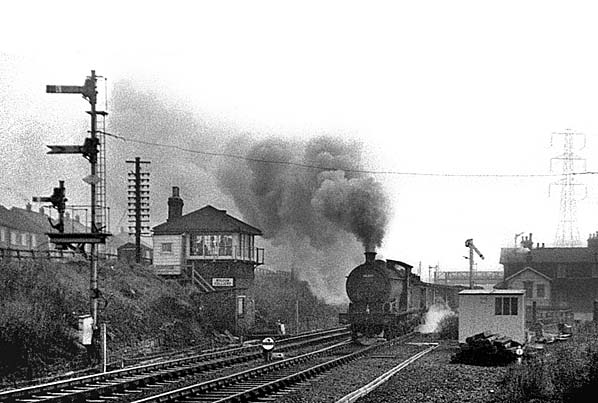

An ex-NER P3 0-6-0 locomotive is blasting its way towards Newcastle through Boldon Colliery station. Like their 0-8-0 NER cousins these simple, but reliable and effective, locos lasted throughout the NER, LNER and BR steam eras (LNER/BR class J27). The crews were paid a bonus depending upon the amount of coal moved, so they were generally seen and heard pounding along! One member of the class survives in preservation. Note the NER slotted post lower quadrant signal that remained at Boldon Colliery until all of the semaphore signals were replaced with colour light signals.
Photo by Bryan Attewell from his Washington Imaging web site

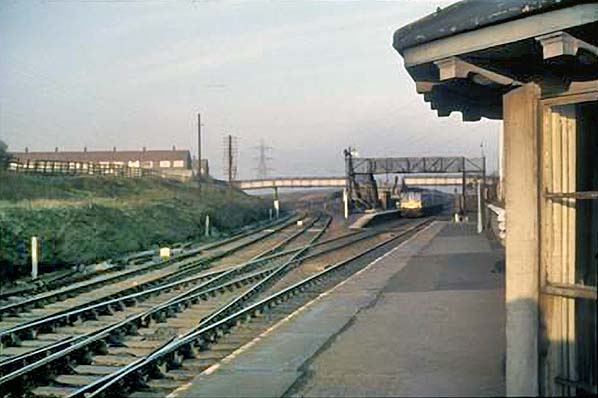

Boldon Colliery in March 1967, looking east on the down platform. The bay window of the station house is in the foreground. A Sunderland-bound DMU is standing at the distant up platform. The freight lines curving to the left lead to Green Lane Junction, Tyne Dock and South Shields.
Photo from SINE project

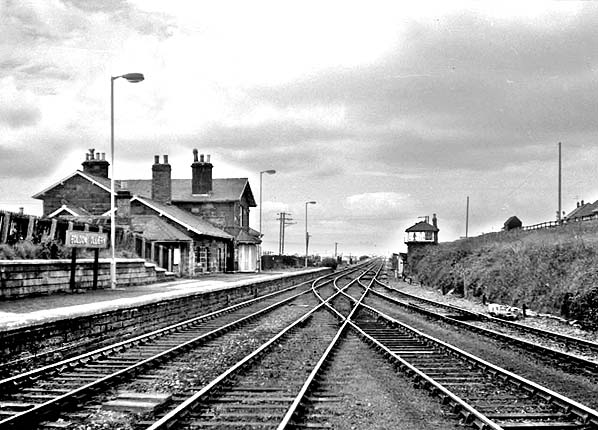

Looking east at the down platform of Boldon Colliery from the western ramp of the up platform in September 1970. The buildings are still in place, as is the LNER running-in nameboard. The signal box can be seen beyond the junction with the freight line from South Shields and Tyne Dock.
Photo by JC Dean

In December 1971 the down platform of East Boldon station is seen from the north-west. The station has been unstaffed since late 1969 and all of the buildings seen here would be demolished the following year; in anticipation of this a ‘bus shelter’ has been installed on the platform. A BR(NE) totem name sign is still fixed to the fence. The gas lamps have already been superseded by electric lighting.
photo from John Mann collection

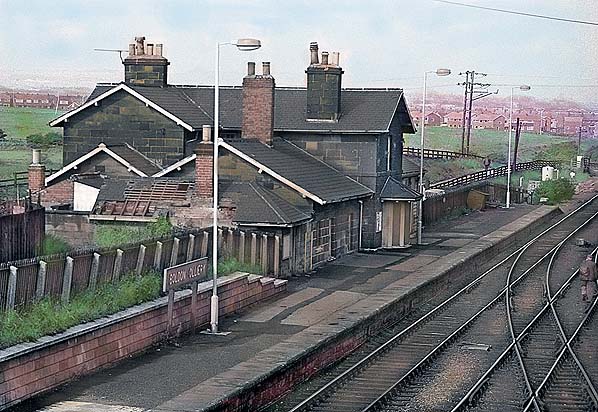

The station buildings at Boldon Colliery, seen here looking west c1971, are a shadow of their former selves. The booking office windows are boarded up, while vandals have attacked the roof of what was probably the toilet. The photographer recalls buying tickets, warmed by a coal fire not
many years prior to this
Photo by Bryan Attewell from his Washington Imaging web site

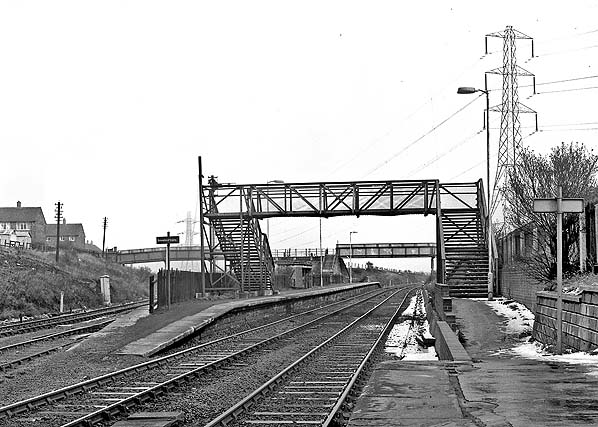

Looking east towards the up platform of Boldon Colliery station c1974.
photo from John Mann collection

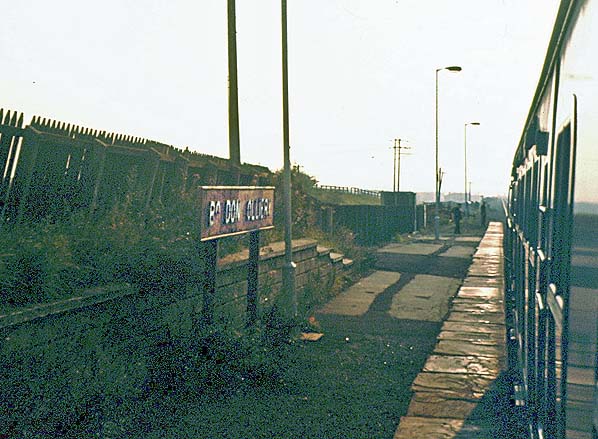

Boldon Colliery station’s down platform is seen from a Newcastle-bound train on 23 August 1973. All of the buildings on this platform have recently been demolished, and the only evidence of the station name on this platform is the LNER running-in board, painted in BR(NE) tangerine; some of the iron letters have been removed from the board by vandals. The lamps were installed c1970.
Photo by Alan Young

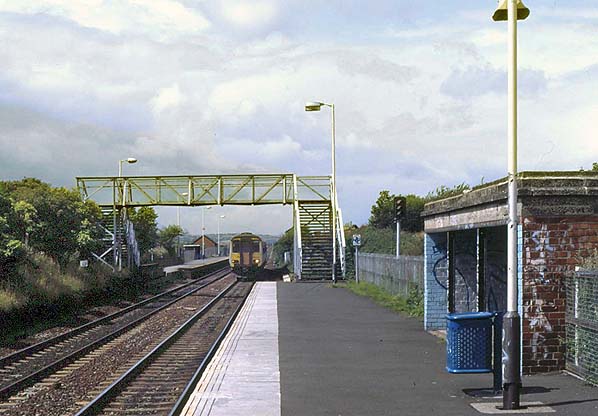

Boldon Colliery station has recently been renamed ‘Brockley Whins’. On 3 August 1992 a DMU on the local service from Newcastle is arriving at the forlorn station. The brick shelter in the foreground on the up platform is the only building which survived the rationalisation of the station in 1972, and it is daubed with graffiti. The down platform, staggered to the west, has only a ‘bus shelter’ for passenger comfort.
Photo by Alan Young

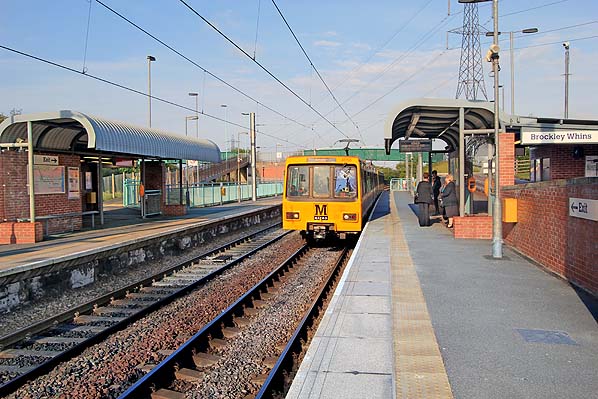

A Metro Train towards Newcastle arrives at Brockley Whins down platform in May 2013.
Photo by Nick Catford
