Station Name: WASHINGTON (2nd site)

[Source: Alan Young]


Date opened: Probably 1.10.1850
Location:

Station Road, south of railway bridge of the level crossing on Usworth Station Road and Washington Road

Company on opening: York, Newcastle & Berwick Railway
Date closed to passengers:

9.9.1963

Date closed completely: 9.9.1963
Company on closing: British Rail (Eastern Region)
Present state: Demolished - some degraded remains of the down platform survive.
County: Durham (now Tyne & Wear)
OS Grid Ref: NZ319556
Date of visit: June 1968 & 22.6.2011

Notes:As noted for Washington’s first station, from 1 October 1850 a new, shorter route to Gateshead (and Newcastle) via Usworth was used between Washington and Pelaw, avoiding Brockley Whins; Washington (2nd) station, on the new line about 600yd north-east of its predecessor, probably opened on the same day. The second station was a little closer to Washington village, but it was some time before any appreciable residential development reached it. When it did, the new settlement took the name ‘Washington Station’, and it had a distinctly industrial character with brickworks, a wire rope works and a large chemicals plant adjacent to the railway. Washington Chemical Works was established in 1842 and by 1900 had become the world’s largest producer of magnesia.

There were two platforms, the up (Leamside-bound) extending some yards north of the down platform, whilst the up platform stretched further south than its neighbour. The main facilities were on the up platform. At the southern end was an NER hipped-roof signal box, and immediately north of it a footbridge of typical NER design. North of the footbridge were two single-storey brick buildings: the first was the rear of the goods shed, and the second was lower with a hipped roof. Finally there was the two-storey station house, a somewhat austere brick structure, partially rendered, with a hipped roof. On the down platform, north of the footbridge, was a single-storey brick building with a ridged roof, of no particular architectural merit and similar to one at Usworth.

In February 1863 the route through Washington was still the main line between Newcastle, York and London. The station never enjoyed a frequent train service. Even in 1863 the long gaps in the afternoon service will be noted, as will the absence of morning ‘rush hour’ Newcastle-bound trains. Only on Saturdays was there a northbound departure before 9.00 am, and this was for passengers travelling to the market in Newcastle. On Sundays in February 1863 there were four up and three down departures from Washington station. Weekday departures are shown in the table below.

Up trains February 1863

Destination

Down trains February 1863

Destination

5.42 am

York

8.47 a.m. Sat Only

Newcastle (ex-Pelton)

7.45 am

York

9.34 am

Newcastle

8.53 am

York

9.45 am Sat Only

Newcastle

11.40 am

York

3.18 pm

Newcastle

4.05 pm Sat Only

Darlington

5.57 pm Sat Only

Newcastle (ex-Pelton)

4.54 pm

York

7.19 pm

Newcastle

5.00 pm Sat Only

Pelton

9.33 pm

Newcastle

9.00 pm

Durham

c 9.46 pm to set down from S of York

Newcastle

By 1911 the NER estimated that the population served by Washington station had reached 7,297, and in that year 60,760 tickets were booked. A complex network of sidings stretched behind the up platform, and these had branches into the nearby factories. The goods shed backed onto the up platform. In 1904 the RCH Hand-book of railway stations lists no fewer than 18 facilities with sidings at Washington and notes that the station could handle the standard range of goods traffic and that it possessed a one-ton crane. NER records for 1913 show that the principal goods handled were bricks, iron and steel, composition and livestock: composition was a pitch-like substance for cementing ducts, used in electrical work.

After World War I motor buses proliferated in the Durham coalfield offering more frequent services than the railways and serving mining villages more conveniently than did the railway stations. This was certainly true of Washington station and its neighbour at Usworth, each of them on the eastern edge of the settlement they served. Nevertheless in 1920 trains still provided a reasonable, though irregularly timed, service as shown below.

Up trains summer 1920

Destination

Down trains summer 1920

Destination

5.21 am

Middlesbrough

8.15 am

Newcastle

7.32 am

Middlesbrough

9.15 am

Newcastle

9.17 am

Middlesbrough

11.06 am

Newcastle

10.52 am

Middlesbrough

2.06 pm

Newcastle

12.50 pm

Leamside

3.17 pm

Newcastle

2.01 pm

Ferryhill

5.52 pm

Newcastle

5.35 pm

Darlington

8.03 pm

Newcastle

7.30 pm

Leamside

9.45 p.m.

Newcastle

8.30 pm

Ferryhill





10.57 pm Wed Only

Fence Houses





On Sundays two trains called in each direction, travelling between Newcastle and York.

At the Grouping of the nation’s railways in January 1923 the NER system was allocated to the London & North Eastern Railway (LNER). The LNER summer 1938 timetable showed a similar service frequency to that provided by the NER in 1920. However in the early years of World War II the service was slashed – as shown in the 1943 table below – and was never to be restored to its pre-war frequency.

Up trains summer 1943

Destination

Down trains summer 1943

Destination

5.06 am

Durham

8.33 am

Pelaw

6.40 am

Penshaw

12.17 pm Sat Only

Newcastle

8.30 am

Penshaw

5.33 pm Sat Exc

Newcastle

12.34 pm Sat Only

Durham





5.34 pm Sat Exc

Leamside





On Sunday one train called in each direction, travelling between Newcastle and Durham.

From January 1948 the station became part of the nationalised British Railways North Eastern Region, and during that time the train service became yet more threadbare and there was no evident modernisation of the facilities: casement-style gas lighting was retained and no new signage was installed. The running-in nameboards were hand-painted in BR(NE) tangerine livery. The timetable issued in September 1953 showed only one southbound train on the line, the 4.26 am ex-Newcastle to Barnard Castle calling at Washington at 4.49 am, and no northbound trains; neighbouring Usworth was shown to have no train service. The following summer’s timetable showed two up trains calling at Washington, at 4.49 am and a terminating train at 8.55 am. There were two down trains starting from Washington, departing on Saturday at 12.16 pm and Monday-to-Friday at 5.16 pm for Newcastle. The token service was timed to serve employees travelling to and from the large chemical works adjacent to Washington station. The Saturday lunchtime train call is a reminder that until the 1960s many industrial personnel worked 5½-day weeks, including Saturday mornings.

The bookings at Washington station had declined to only 2,318 in 1951. By this time the main passenger traffic was to and from the chemical works beside the station, so many of the tickets used at Washington would have been returns booked elsewhere; this possibly accounts for the bookings at Usworth, from where some of the workers possibly travelled, being over twice as many as at Washington.

By summer 1957 the early morning train to Barnard Castle had ceased to call at Washington, and from September 1960 the Saturday-only northbound departure was discontinued. It came as no surprise that the Reshaping of British Railways (‘Beeching’) report of March 1963 recommended the closure of the Newcastle – Washington service which, by then, consisted of one Monday-to-Friday morning arrival at 8.56 and an afternoon departure at 5.33. The timetable indicated that staff were in attendance when both of these train called, whilst neighbouring Usworth had ceased to be staffed in 1959. Almost every other line or station closure proposal drew objections, but no-one came to the rescue of Washington which consequently had the distinction of being the first post-Beeching closure on 9 September 1963. Goods services continued until 7 December 1964.

The up platform and its buildings had disappeared by 1968, but the down platform, minus its edge-stones, remained in place with its brick building. The station has now been entirely demolished.

It is ironic that within a year of losing its trains, on 24 July 1964 Washington was designated a New Town. The planned 5,300 acre (2,200 hectare) development now has a population of over 50,000 and is one of the largest towns in the United Kingdom not to be served by rail. Consideration has been given to including it in the Tyne & Wear Metro system, using the former ‘Old Main Line’, or on a heavy rail reinstatement of the line - which has recently been lifted after over 20 years ‘mothballing’. However the problem that the two previous Washington stations had of being inconveniently sited for the town would still apply if a new station is provided on the Old Main Line route: the new town has been built almost entirely to the west of the railway, so the placing of the station would, once again, be peripheral. Only by being developed as a park-and-ride facility could it hope to provide a worthwhile service for the town.



The Reshaping of British Railways (‘Beeching’) report of March 1963 did not recommend the Newcastle – Sunderland / South Shields local services and stations for closure, but the Washington route was earmarked. The closure to passengers of the line to Washington on 9 September 1963 entailed the withdrawal of the Newcastle to Washington train departing from Pelaw at 8.44 am and a reverse working from Washington to Newcastle which called at 5.47 pm, both operating on Monday-to-Friday only. As part of the programme of withdrawing goods services from wayside stations, Pelaw ceased to handle this traffic on 4 October 1965. On 2 January 1967 the North Eastern Region was abolished and its lines and stations were transferred to Eastern Region management. The Newcastle – Sunderland and South Shields branch local services were among those changed by the Eastern Region to ‘Paytrain’ operation in which, as an economy measure, booking offices were closed at all but the most important stations and tickets were issued instead by conductor-guards on the train. Pelaw and all of the other intermediate stations between Newcastle and Sunderland / South Shields consequently became unstaffed on 5 October 1969. Without staff in place, Pelaw station buildings were targeted by vandals. In early 1972 BR demolished all of the buildings, replacing them with a brick shelter. Electric lighting on the tall vandal-proof standards favoured by the Newcastle Division of the Eastern Region was installed. In 1974/5 Corporate Identity name signs were added.

Plans were approved in 1973 for conversion of the South Shields branch to light rail operation as part of the Tyne & Wear Metro. In preparation for this Felling and Pelaw stations were to close and be replaced with a new station at Heworth approximately midway between the two to act as an interchange between Sunderland line trains (which would continue to be operated by British Rail) and the South Shields Metro services. Heworth opened and Felling and Pelaw closed on 5 November 1979. Pelaw station was demolished. However Felling was rebuilt and reopened on 15 November 1981 to be served by the frequent South Shields Metro trains, but not the Sunderland trains.

ADDITIONAL SOURCE: Durham Mining Museum website

BRIEF HISTORY OF 'THE OLD MAIN LINE'
The ‘Old Main Line’ was the name frequently given to the railway between Ferryhill and Pelaw in County Durham which, from 1850 until 1872 formed part of the ‘East Coast’ route from London (Kings Cross) to Newcastle. Prior to 1850 trains ran via Brockley Whins, prior to the opening of the Washington – Pelaw line, and until 1848 terminated at Gateshead rather than Newcastle. From 1872 the present East Coast main line route was used, with diversions in 1906 when the opening of King Edward Bridge removed the need to travel via Gateshead (West) and at Newton Hall Junction, north of Durham, where the curvature of the tracks was reduced in the late 1960s. The evolution of the ‘Old Main Line’ was far from straightforward.

By the beginning of the nineteenth century waggonways were already in existence to move coal from the mines in south-east Northumberland and north-eastern County Durham to tidal water for export. It stands to reason that passengers will have been carried unofficially on such lines, but the first recorded passenger transport by rail in north-east Durham was in 1834 on the Pontop & South Shields route. Originally opened as the Stanhope & Tyne Railroad, it was not established by parliamentary Act but was built on the ‘wayleave’ system under a Deed of Settlement dated 3 February 1834, perhaps to conceal the ambitious nature of the scheme, which was 33¾ miles in length. Under this arrangement the company was to pay a toll, based on the amount of traffic carried, to each landowner through whose property the railway passed.

The south-western end of the line was in Weardale, on the moors just south of Stanhope. Here limestone was quarried, and there were deposits of coal available at intervals between Consett and South Shields. In July 1832 building of the line began, and progress was rapid. Although much of the terrain it crossed was moorland at high altitude, few earthworks were constructed or excavated, and some steep slopes on the south-western section of the route were negotiated with inclines; indeed more than half was worked by inclined planes, either self-acting or with a winding engine, and a few near-level stretches were worked by horses. Locomotives were used only at the eastern end. Much of the line remained unfenced until it closed in the 1960s. The route from Stanhope lime-kilns to Annfield was opened on 15 May 1834, and the eastern section onward to South Shields on 10 September 1834. The engineer T E Harrison surveyed the route; he was to become one of the most influential personnel of the NER.

The carriage of minerals was the priority of the Stanhope & Tyne, and no attempt was made to serve centres of population which would generate passenger traffic. Nevertheless there were requests for passengers to be conveyed so they were permitted to ride free-of-charge on top of the coal wagons. Soon a wagon was attached specifically for passenger use, and shortly afterwards a separate locomotive-hauled passenger coach was provided fortnightly on pay days. Finally, on 16 April 1835, a full passenger service was instated between Durham Turnpike (one mile north of Chester-le-Street) and South Shields, possibly calling from the start at Vigo and Washington. At South Shields a nearby inn sold tickets, and passengers boarded the train in sidings. Part of this route, from Washington to Brockley Whins, was to become a section of the original ‘Old Main Line’. The isolated stretch of passenger railway between Durham Turnpike and South Shields was joined by the Brandling Junction Railway from Gateshead to Brockley Whins, three miles south-west of South Shields, opening to minerals on 30 August 1838 and passengers on 5 September 1839; and the Durham Junction Railway, stretching north from an obscure terminus at Rainton Meadow (with horse-bus connection to Durham) to Washington opened for mineral traffic on 24 August 1838 and passengers on 9 March 1840.

Unfortunately the cost of running the Stanhope & Tyne proved unsustainable. In the moorlands wayleaves cost about £25 per mile per year, but at the eastern end the figures were £300 or more. The outgoings on wayleaves alone amounted to £5,600. Plans for a dock (where Tyne Dock was later opened) were abandoned. Traffic did not develop to the expected levels and the wayleaves proved to be financially crippling. By the close of 1840 the railway company was £440,000 in debt, and it was wound up on 5 February 1841. The following year the Pontop & South Shields Railway obtained an Act to take over the northern end of its track which had hosted the passenger service. The Derwent Iron Company took control of the section south-west of Carr House to bring limestone from Stanhope to its furnaces at Consett. This section later passed into the hands of the S&D.

The Brandling Junction Railway (BJ) originated as a private venture by brothers R W and J Brandling to connect Gateshead, South Shields and Monkwearmouth. The brothers obtained an Act to buy or purchase leases for the land over which their lines would pass, but they chose to proceed by the wayleave system. A company came into being on 7 September 1835 to acquire the assets of the Brandling Railway, and as the Brandling Junction Railway Company it was incorporated by Act of Parliament on 7 June 1836. The Stanhope & Tyne also sponsored a Gateshead, South Shields & Monkwearmouth Railway, but discussions with the BJR resulted in the abandonment of the plan. The BJR opened in three sections. The first was from the Newcastle & Carlisle Railway’s Redheugh in Gateshead, adjacent to the River Tyne, which ascended at 1:23 through Greenes Field to Oakwellgate; this was operated by a stationary engine. A self-acting incline from Gateshead Quayside was opened with it on the same day, 15 January 1839. The route from South Shields to Monkwearmouth opened on 19 June 1839, followed by the connecting lines between Gateshead and Cleadon Lane (later East Boldon) and between Brockley Whins and Green Lane (north-east of Brockley Whins) on 5 September 1839. A chord known as the Newton Garths branch opened on 9 September 1839 between East Boldon and West Boldon junctions, immediately south-east of Pontop Crossing, but this was not used by passenger trains. On 9 March 1840 the west-to-north link between the BJ and S&T opened at Pontop Crossing which enabled through services between the several termini at Gateshead, South Shields, Monkwearmouth and the Durham Junction Railway’s Rainton Meadows to operate. However services from the south had, at first, to reverse from just north of Pontop Crossing to reach Brockley Whins in a complex operation (described on the Brockley Whins page).

The Durham Junction Railway (DJ) was authorised by an Act of 16 June 1834. It became an important link in the chain of railways forming the ‘Old Main Line’, the original intention was merely to redirect to the Tyne coal from the pits in the Houghton-le-Spring area, and from pits served by the Hartlepool Railway. Even these modest ambitions were not realised as its southern terminus was to be at Rainton Meadows, two miles short of Moorsley, its intended destination, and the Houghton-le-Spring branch, authorised by an Act of 1837, was never constructed. Nevertheless a ‘Station Road’ was partly constructed in Houghton – the triumph of hope over reality – which was to be one of the largest population centres in the North-East never to have the benefit of a passenger station.

The DJ’s crowning glory was the stately stone viaduct over the River Wear between Penshaw and Washington, and based upon the Roman bridge at Alcántara, Spain. The last stone was laid on the day of Queen Victoria’s coronation, 28 June 1838, thus it was named Victoria Bridge (or Viaduct). The engineer T E Harrison constructed four main arches, those at each end of 100ft span and the two central arches of 160ft and 144ft; the total length was 811ft and the height above water level was 135ft. In 1843 the DJ became part of the portfolio of the ambitious George Hudson (the ‘Railway King’) as part of his plan for an integrated east-coast route. The Act of 23 May 1844 which confirmed his purchase of the line also made provision for the project of bridging the Tyne.

At Washington the DJ connected with the Stanhope & Tyne whose metals were used as far as Brockley Whins. Here the BJ line was joined, and the passenger service between Rainton Meadows and Gateshead took this route from its inception on 9 March 1840. The S&T owned over half of the DJ shares and also worked the services. As noted above a reversal was necessary at Brockley Whins, and this inconvenience was compounded by congestion caused by the DJ and S&T/P&SS trains sharing the line between Washington and Brockley Whins. To allow more efficient operation powers were sought to construct a direct curve and to widen the line between Washington and Brockley Whins: an Act of 23 May 1844 authorised these projects. The curve was on a difficult site intersected by the River Don and was constructed on a wooden viaduct which stood until 1940. The viaduct was used by main line trains until 1 October 1850 when the more direct route between Washington and Pelaw via Usworth was opened.

For the next stage in the evolution of the ‘Old Main Line’ through County Durham it is necessary to return to the 1830s. The Great North of England Railway obtained its Act for a route from Redheugh Quay at Gateshead to Croft (south of Darlington) on 4 July 1836. After opening from York to Darlington the GNE decided, for financial reasons, not to construct the route onward to Gateshead, and on 5 October 1841 agreed to relinquish the powers to Robert Davies, James Richardson and John Hotham, who acted on behalf of the embryo Newcastle & Darlington Junction Railway. The N&DJ agreed to apply for powers to finish the line and pay all costs. The N&DJ was incorporated on 18 June 1842, and on 11 April 1843 the northern part of the GNE was transferred by Act of Parliament to the N&DJ. Work proceeded swiftly, and the line opened throughout on 15 April 1844 to mineral traffic and to passengers on 19 June. The short section between Belmont Junction (where the Durham branch left the main line) to join the Durham Junction line at Rainton Crossing was the last to be completed. There was now a direct railway link from London to the Tyne: on 18 June 1844, the day before the route opened to regular passenger traffic, a special train made history when it ran from London (Euston Square) to Gateshead in 9h 21m, including stops totalling 70 minutes. At the time of opening the N&DJ did not actually own the line beyond Washington, but had a station at Gateshead, reached via the P&SS and BJ railways: although only authorised by the Act of 23 May 1844 the station was illustrated by an engraving in a Gateshead newspaper four weeks later.



The early days of the N&DJ were difficult owing to strained relations with the GNE. For details see K Hoole’s Regional History vol 4.

The original ‘East Coast’ main line of 1844 therefore ran from Ferryhill to Gateshead via Shincliffe, Leamside, Penshaw, Washington, Brockley Whins and Pelaw. The Gateshead terminus was at Oakwellgate, which had opened on 5 September 1839. On 2 September 1844 Oakwellgate closed, and the service was diverted to the Greenesfield terminus, which had opened on 19 June 1844. This terminus, in turn, gave way to a new through station which would eventually be known as Gateshead East, when the main line was extended to Newcastle Central, crossing the River Tyne on a temporary bridge (opened 1 November 1848) then on the High Level Bridge, which opened on 30 August 1850. From 1 October 1850 the new, shorter route via Usworth was used between Washington and Pelaw, avoiding Brockley Whins. This ‘Old Main Line’ or ‘Leamside’ route was used until 15 January 1872 when through express services were diverted to the route via Durham.

The ‘Old Main Line’ continued life as an important freight route and retained its stopping passenger service between Leamside and Ferryhill into LNER days. This service - latterly amounting to four up and five down trains on weekdays and one up on a Sunday, calling at the intermediate stations of Shincliffe and Sherburn Colliery – was to have been withdrawn in 1939 but closure was deferred until June 1941. Thereafter the Leamside – Ferryhill line was used for passenger trains diverted from the main line via Durham and for freight traffic. In 1991 British Rail mothballed the line, but owing to dumping of rubbish on the lines, removal of rails at level-crossings, theft of 2½ miles of track near Penshaw in 2003, and effects of overall neglect Network Rail decided to close the line entirely and the rails were removed by April 2013. Concrete sleepers recovered from the route are understood to be destined for re-use on the Waverley Route currently under construction between Edinburgh, Galashiels and Tweedbank.



The Durham diversion was, like the development of the Leamside route, a result of evolution rather than one direct action.

BRIEF HISTORY OF 'THE NEW MAIN LINE'
Access to Gateshead from the south was via Leamside until 1872, when the present-day East Coast main line superseded it. However much earlier, in July 1846, the York & Newcastle Railway announced its intention to promote a Bill for a line following a route via the Team valley from Gateshead (and ultimately Newcastle). On 30 June 1848 the Y&N – by now the York, Newcastle & Berwick Railway – obtained an Act authorising construction. The proposed route was from Gateshead via Team Valley to Newton Hall, where a branch to Durham and Bishop Auckland continued southwards, while the main line curved eastwards for about a mile then turned south to join the main line near Belmont Junction. However in 1849 the work was postponed owing to the downfall of George Hudson.

The NER in 1862 revived the project, but the line authorised was only between Gateshead and Newton Hall on the Bishop Auckland branch north of Durham, which had opened from Leamside in 1857. The section eastwards from Newton Hall had been constructed as part of the Bishop Auckland branch, but there was no west-to-south curve near Leamside to allow through running from the north onto the old main line via Shincliffe. Consequently the new line could be used only as an alternative route to Durham and the south via Bishop Auckland; and at first there were only four stopping trains in each direction between Newcastle and Durham. The Team Valley route opened on 1 December 1868, and it became part of the ‘new’ East Coast main line on 15 January 1872 when the line between Relly Mill Junction (one mile south of Durham) and Tursdale Junction (one mile north of Ferryhill) was completed.

Sources and bibliography:

Tickets from Michael Stewart except 5101 JC Dean. Bradshaws from Chris Totty,

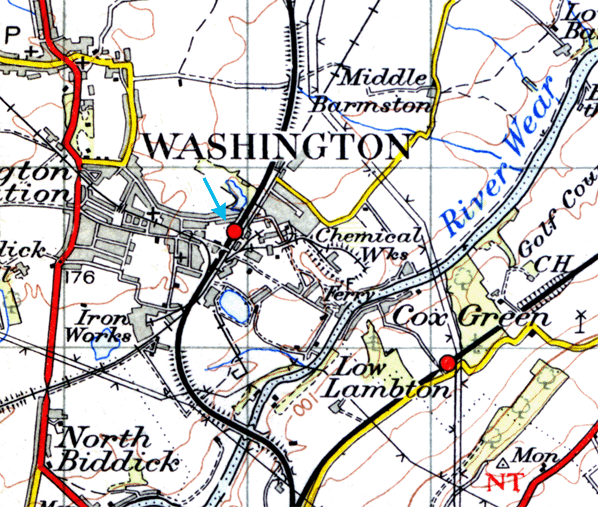

Route maps drawn by Alan Young.

To see other stations on the Old Main Line click on the station name: Felling 2nd, Felling 3rd , Felling 1st, Pelaw 1st, Pelaw 3rd, Pelaw 4th , Pelaw 2nd, Usworth, Washington 1st, Penshaw 1st, Penshaw 2nd, Fencehouses, Rainton, Rainton Meadows (on branch), Leamside 1st, Leamside 2nd, Belmont Junction, Durham Gilesgate (on branch), Sherburn Colliery, Shincliffe & Ferryhill

See also Coxhoe (branch from Ferryhill)

See also: Springwell, Brockley Whins (1st site), Brockley Whins (2nd site)
& Boldon (route prior to 1850)

See also Sunderland and Durham (via Leamside):
Durham (still open), Frankland, Cox Green, South Hylton , Hylton, Pallion 1st, Pallion 2nd , Millfield 2nd, Millfield 1st, Millfield 3rd , Sunderland Fawcett Street (on branch) & Sunderland Central (Still open)


Station still open as part of the Tyne & Wear metro


Washington second station looking north along the down platform c1904. The two platforms have a ‘partially staggered’ layout, the down platform extending further south while the up platform extends further north. The NER running-in board is in the foreground. The footbridge is the classic NER design.
Copyright photo from John Alsop collection

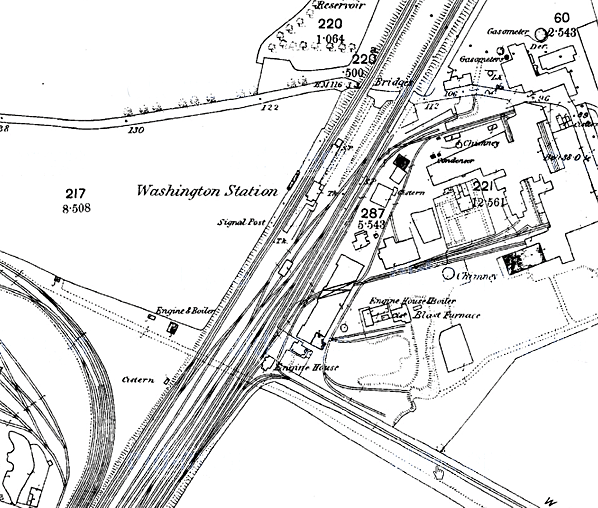

1873 1:2,500 OS map. Washington (second) station in 1873. The passenger facilities are seen here prior to the installation of the footbridge. The industrial setting of the station is evident with sidings serving the factory to the east and coke ovens to the south-west. As yet there is no housing
adjacent to the station.

1896 1:2,500 OS map. The industrial landscape around Washington station is evident in 1896 with the thriving chemical works to the east and an ironworks to the south-west. Terraced housing has appeared to the north-east of the chemical works with a few terraces and associated social facilities to the west and south-west. The large expanse of railway sidings is prominent.

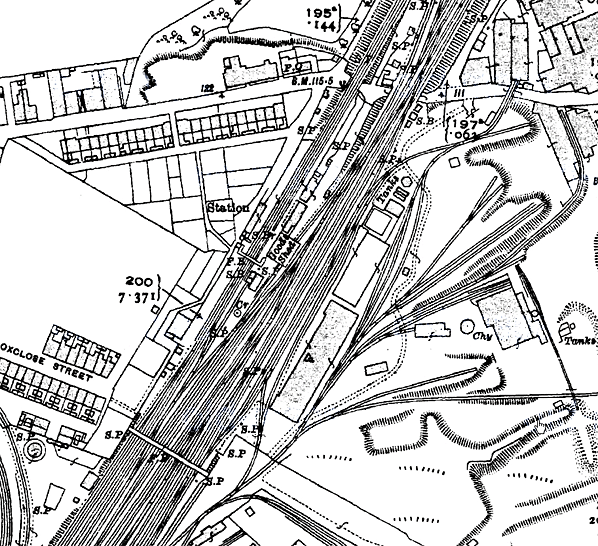

1920 1:2,500 OS map. In the early years of the twentieth century the fields to the west and south-west of Washington station were filled with terraced housing, and a substantial community distinct from ‘old’ Washington came into being – known to this day as ‘Washington Station’. In 1920 the industries were still buoyant, but there is ample evidence of environmental deterioration in the number of pits and spoil heaps east of the railway.

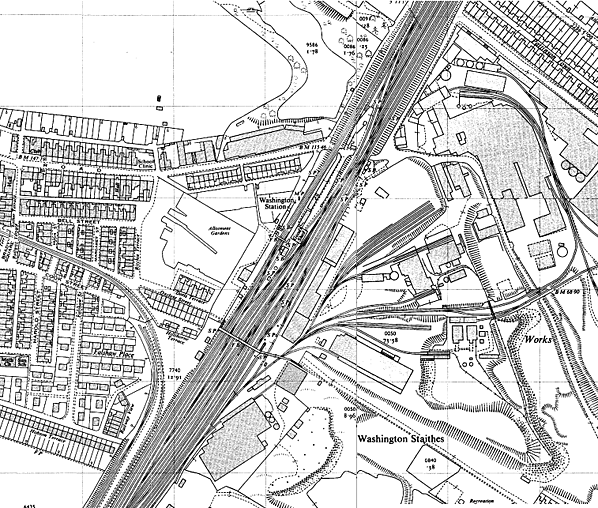

1959 1:2,500 OS map. Despite the busyness of the landscape surrounding Washington station the passenger train service was soon to dwindle almost to extinction. The station was conveniently placed to serve the local heavy industries, but was peripheral to the residential areas which were better served by bus. Significantly, in its last years Washington station’s minimal train service was geared to the needs of the chemical works employees.

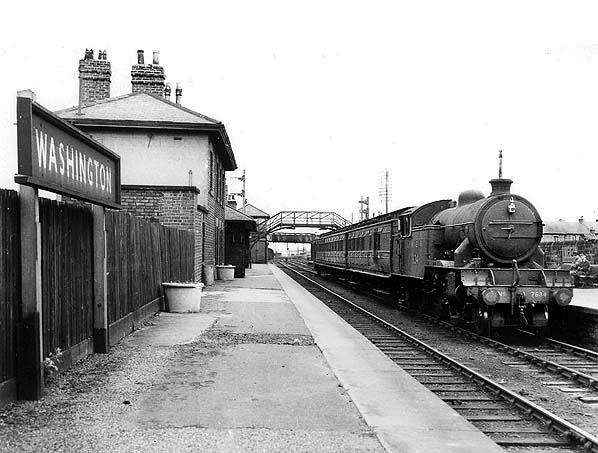

Washington station looking south in the late 1940s.Beyond the hand-painted running-in board is the main building. The footbridge is the typical NER style. The loco hauling a northbound local passenger service received its LNER number 7634 in April 1946. After Nationalisation it was renumbered 67634. This V3 2-6-2T was originally built as a V1 class until 1940, when it was rebuilt with a higher boiler pressure. Withdrawn on 16 April 1962 from 52C Blaydon shed, it was taken for breaking up
during June of the same year.
Photo by WA Camwell

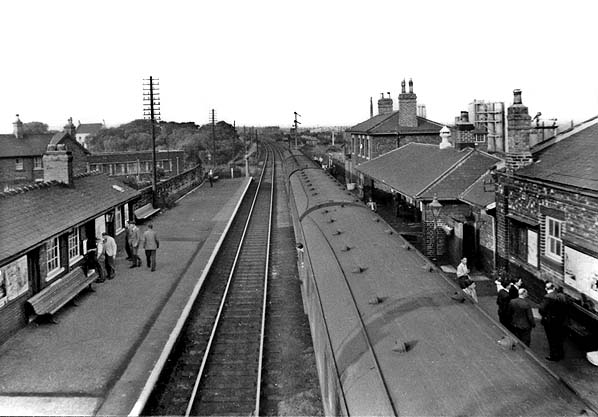

Washington station is seen looking northwards from the footbridge on 31 August 1958. The range of buildings on the right (up) platform included the booking facilities, and the austere single-storey building on the left was a typical NER structure providing waiting rooms. The lengthy train standing at the up platform is Stephenson Locomotive Society (North West Area) / Manchester Locomotive Society
West Durham Railtour; the men on the down platform are clad in sports jackets and ‘flannels’ – the preferred attire of adult railway enthusiasts before the advent of the ‘anorak’!
Photo from John Mann collection

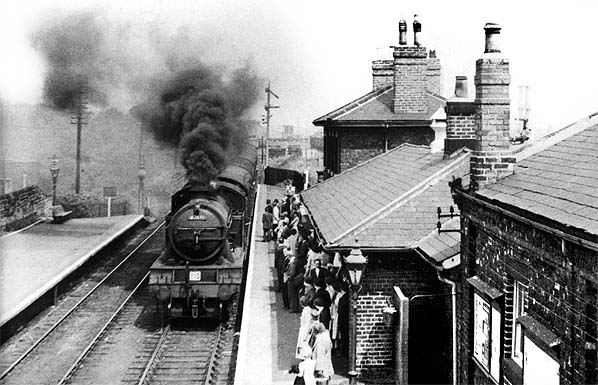

On 19 July 1958 an excursion from Usworth to the Miners’ Gala at Durham arrives at the crowded up platform of Washington station. Judging by the smoke, the fire is not in the best of conditions on 67691, a Gresley-designed V3, 2-6-2T.  Built in April 1940 as a V1 Class numbered 401, it was renumbered by the LNER in 1946 to 7691, before Nationalisation renumbering in 1948. At Nationalisation the loco was housed at 51D, Middlesbrough shed. On 30 November 1964 it was withdrawn from service, by which time it was at 52A, Gateshead. T J Thompson of Stockton cut the loco up on 28 February 1965.
Photo by IS Carr

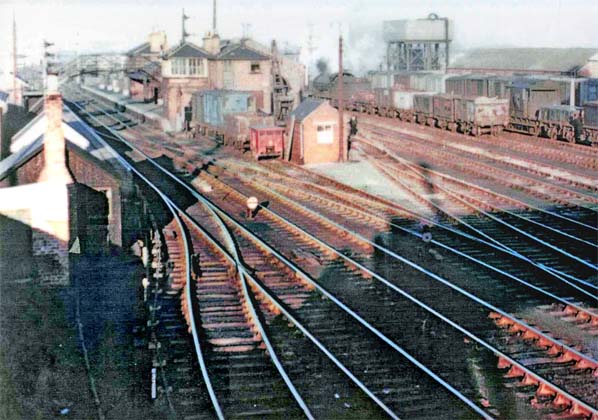

.Looking north towards Washington station in the early 1960s from the long footbridge which crossed all of the tracks.  This view places the station in its context. The passenger station, complete with its footbridge and signal box, is to the left, with the extensive sidings to the right and the chemical works in the haze beyond

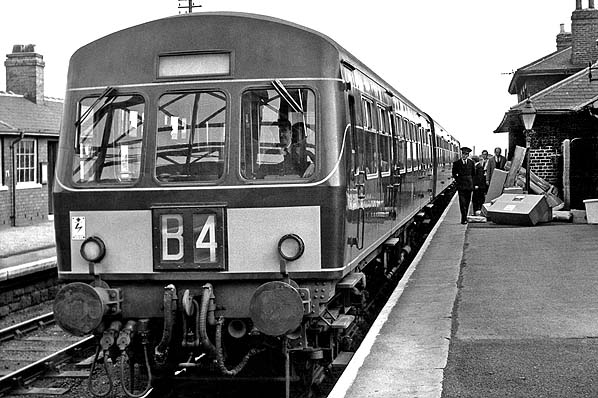

A Metro-Cammell DMU calls at the up platform of Washington station in 1963.

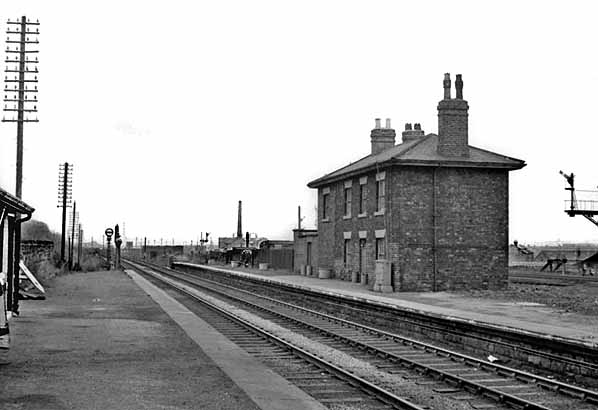

. Looking north at Washington along the down platform in the mid 1960s after its closure to passengers. The main building is still in place on the up platform, but the adjoining structure which provided waiting accommodation has been demolished; it stood to the right of the main building.
Photo by JC Dean

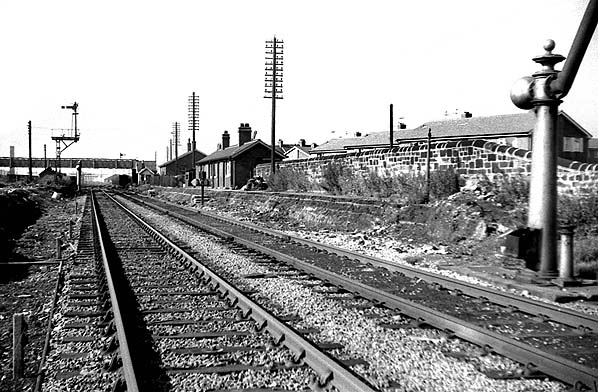

Washington  station looking south-west in June 1968. The up platform (extreme left) has been demolished, and the degraded remains of the down platform are on the right, together with the former waiting room block.
Photo by Nick Catford

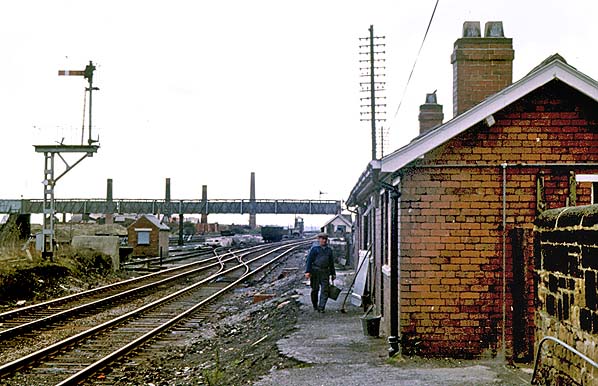

The remains of Washington station’s down platform and the waiting room block seen in April 1977. By this time the up platform and its buildings had been removed.
Photo by Alan Young

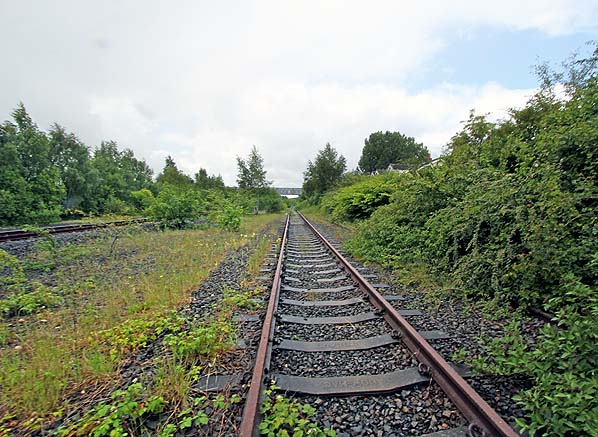

The site of Washington station looking south-west in June 2011
Photo by Nick Catford

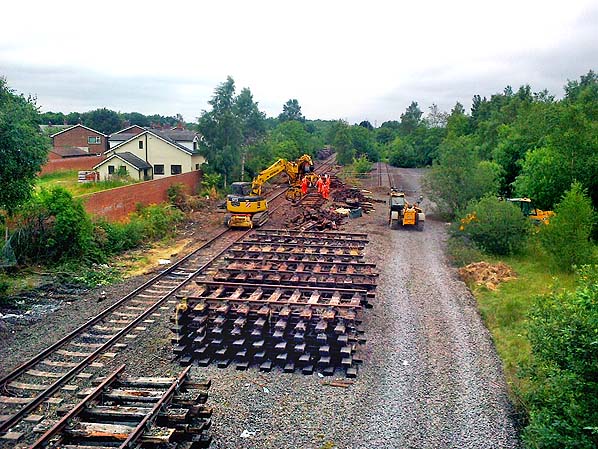

.Looking north-east from the long footbridge towards the site of Washington station in July 2013. Track-lifting of the ‘mothballed’ railway route is underway, with only the up line remaining;
this, too, would soon be removed
Photo by Brian Hodgeson

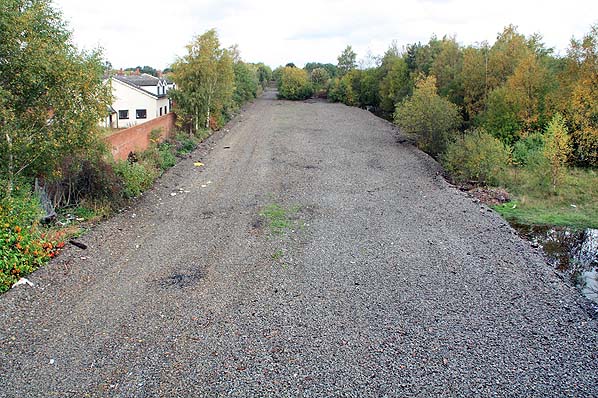

Looking north-east from the long footbridge towards the site of Washington station in October 2013. The ballast has been left in place ensuring the track bed remains clear of vegetation.
Photo by Ali Ford
