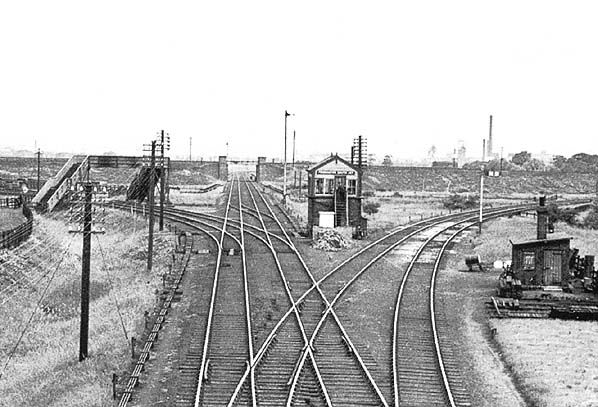

Pennington South Junction looking north in 1950. The line going straight on is the Bolton route. The Tyldesley line is seen curving off to the right and the Bickershaw Junction line to the left. In the distance the Pennington avoiding line can be seen passing over the Bolton route.
Copyright photo from Stations UK

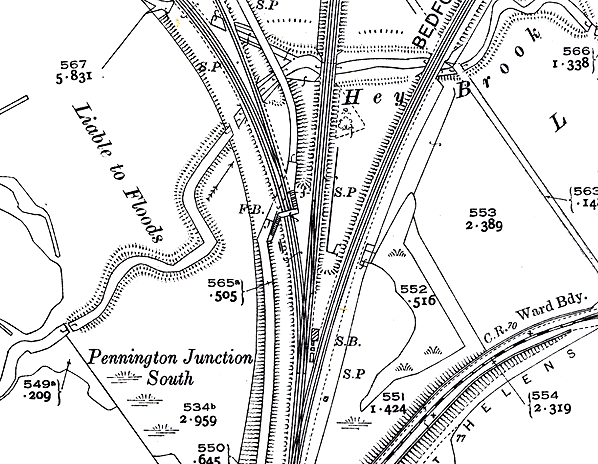

Pennington South Junction shown on a 25-inch scale map from 1926. Heading north is the line to Bolton Great Moor Street. Curving towards the north-east is the route to Tyldesley. the Bickershaw Junction line is seen curving towards the north-west and branching off from it is the Westleigh colliery branch.


The inside of Pennington South Junction signal box on 30 april 1956.
