NOTTINGHAM SUBURBAN RAILWAY
Photographic survey of tunnel portals and bridges made in 1904. The survey includes station footbridges.
All photos from Brubaker Imaging

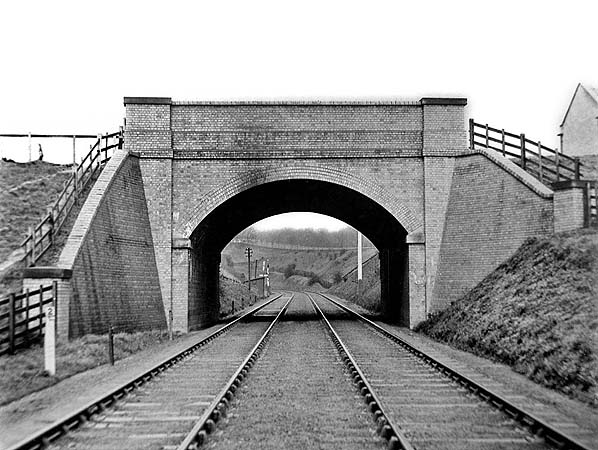

Bentleys Bridge south face (Bridge No. 10). Demolished.

Sherwood Tunnel south portal. Buried.

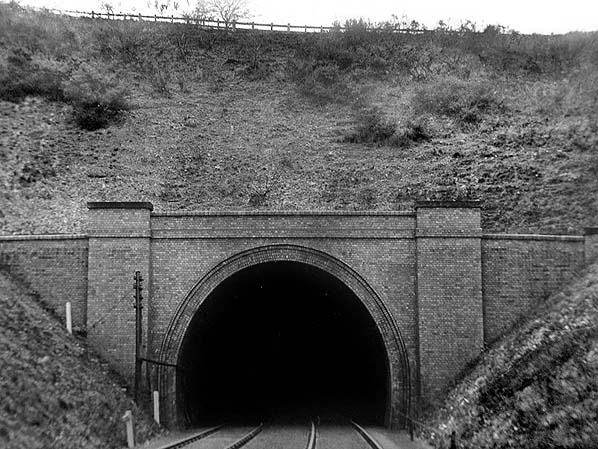

Sherwood Tunnel north portal. Buried. Partially filled cutting accessible.

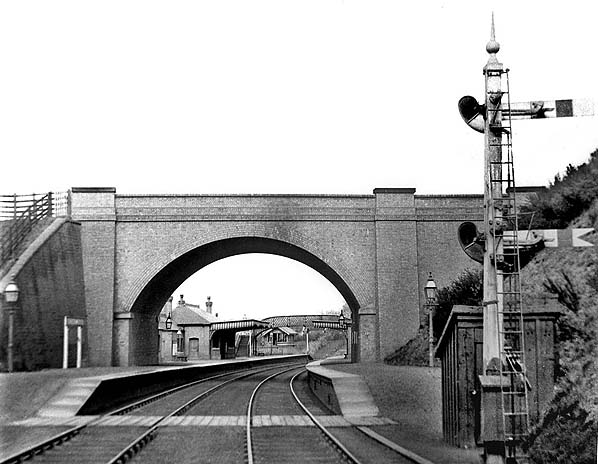

Looking north at Sherwood station, the platform runs under Sherwood Vale bridge. (Bridge No. 11). Bridge extant at north end of cutting to Sherwood tunnel.

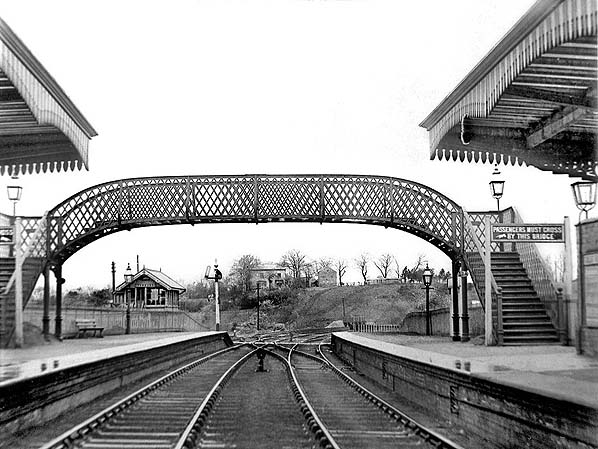

Looking north from Sherwood station and footbridge (Bridge 11A). Demolished.

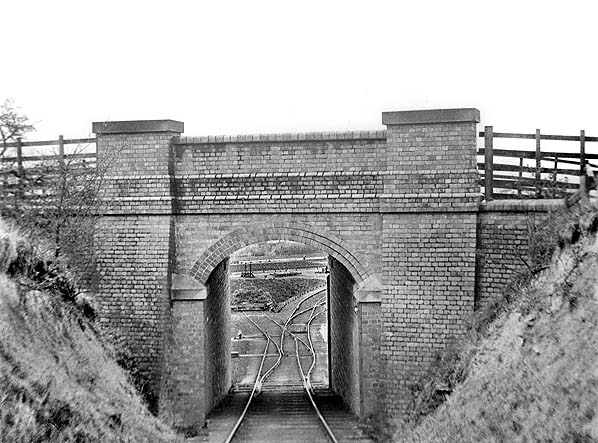

The bridge taking Sherwood Vale over the bottom of the Mapperley incline,
(Bridge No. 12). Bridge extant.

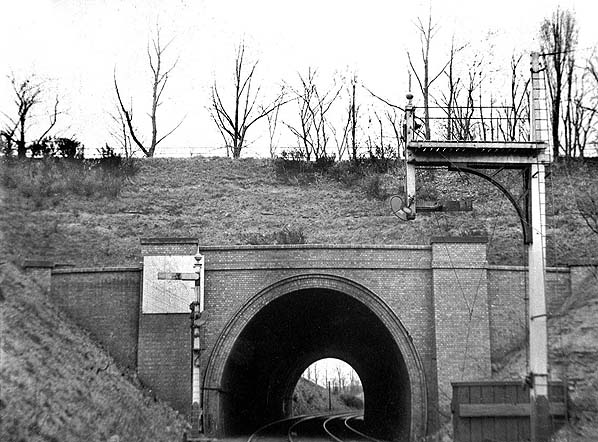

Ashwell's tunnel south portal. Buried. Partially filled cutting contains garages for nearby flats.

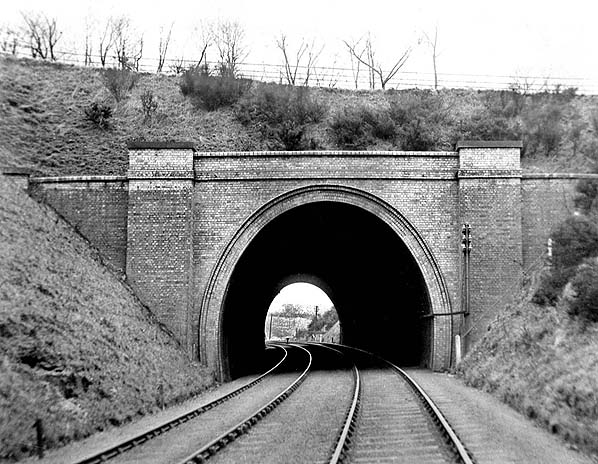

Ashwell's tunnel north portal. Buried

Scout Lane bridge. (Bridge No. 13). Bridge extant but arch blocked. The south side of the bridge is in Woodthorpe Grange Park. The front end of a steam loco on a short section of track protrudes from the infilled arch. Click here for three pictures.

East side of Marlborough Road bridge. (Bridge No. 14). Demolished.
Gedling Lane Bridge (Bridge No. 15). Demolished.

Mansfield Road, Daybrook. Demolished.










[Source: Nick Catford]
